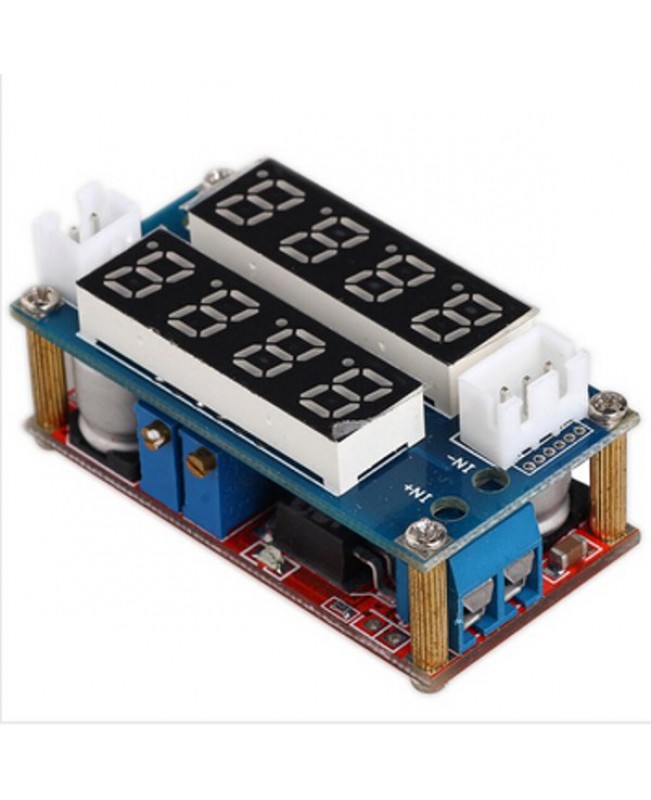

5A Adjustable Voltage Module LED Panel Voltmeter Ammeter

0 reviews / Write a review

$17.54
Ex Tax: $17.54

Product Code: model_143
Availability: In Stock

Qty

Product Description

5A Adjustable Voltage Module LED Panel Voltmeter Ammeter Description: Module Properties: non-isolated constant current and voltage module Rectification: non-synchronous rectification Input voltage: 5V-30V Output voltage: 0.8V-29V Output current: adjustable maximum 5A Conversion efficiency: 95 (the highest) Switching frequency: 300KHz Output ripple: 50mV (max) 20M bandwidth Load Regulation: 0.5 Voltage Regulation: 2.5 Operating Temperature: -40to +85 Measurement Accuracy: 0.1 Refresh rate: about 200ms one time Display: 0.28"digital tube Current: 0A-5A voltage: 5V-30V working current: Less than 15mA Display Color: red Input impedance: 50mΩ Size: 51 * 26.3 * 14 (L * W * H) (mm) Weight:32g

Notice:Please connect right as the printed :"IN-,IN+,OUT-, OUT+", or the Module will be burned.

Package includes: 1 x LED Panel Voltmeter Ammeter
