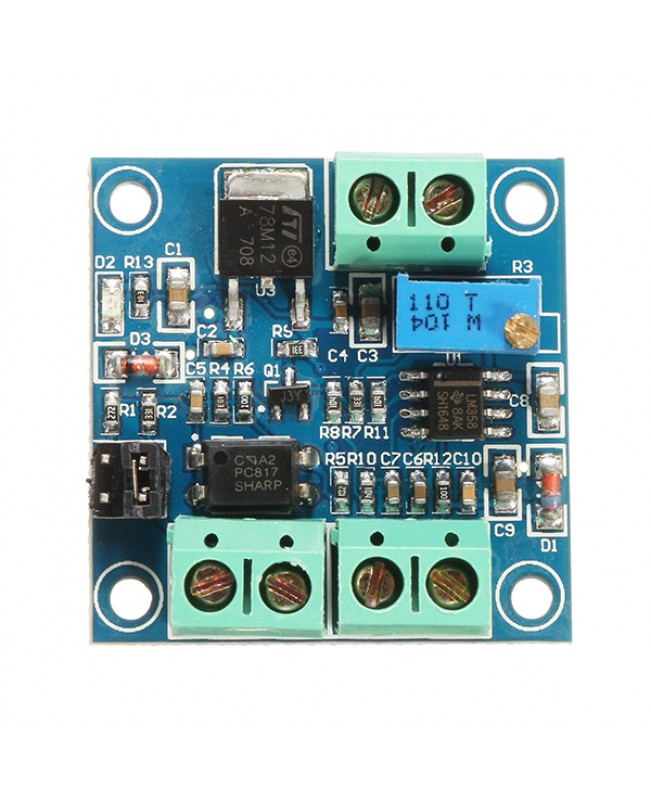

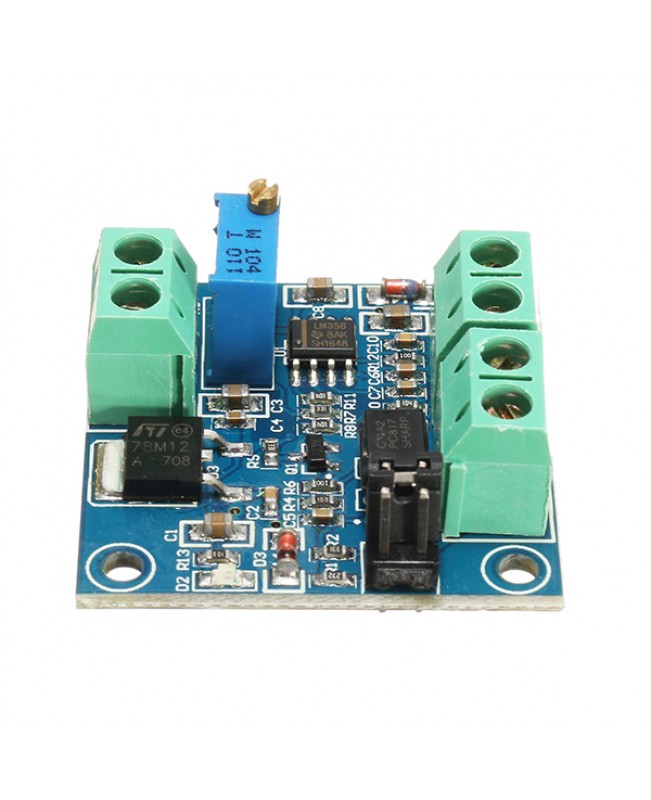

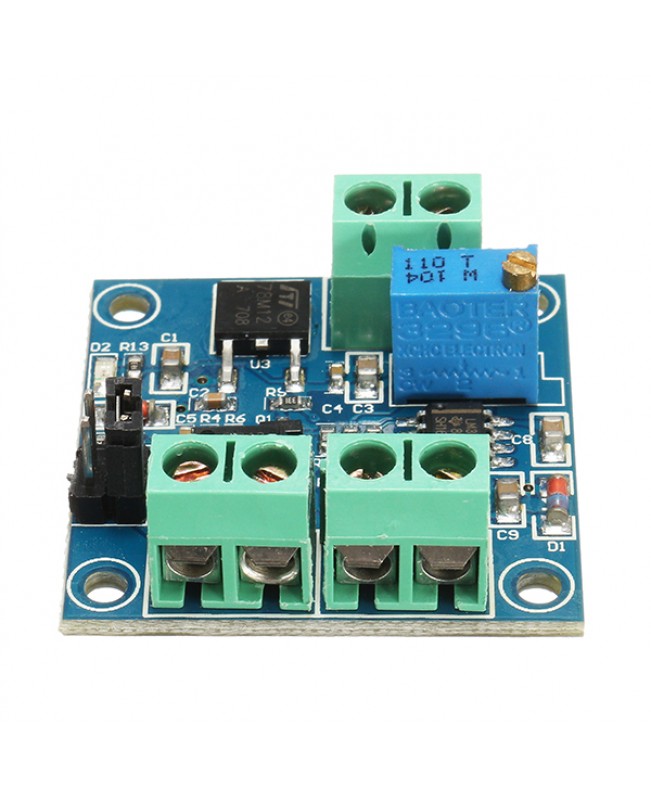

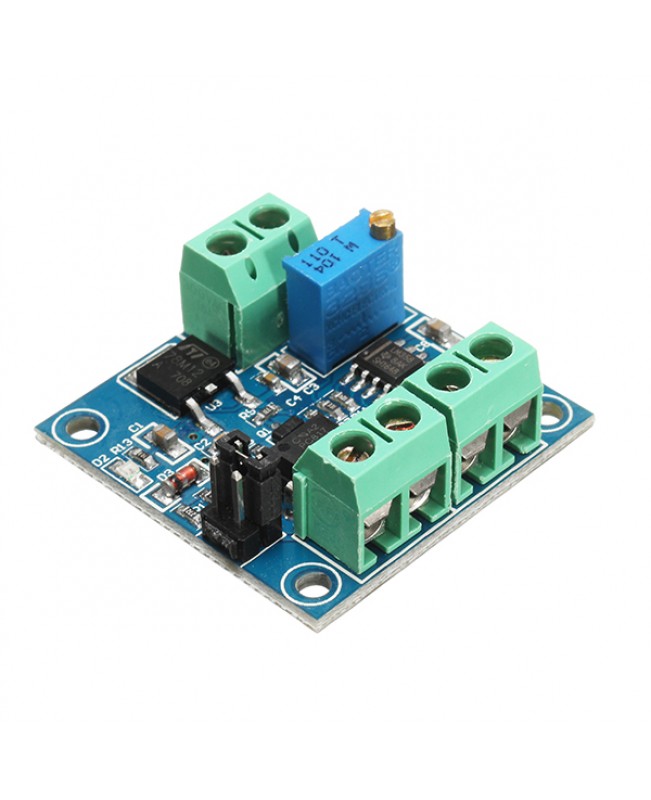

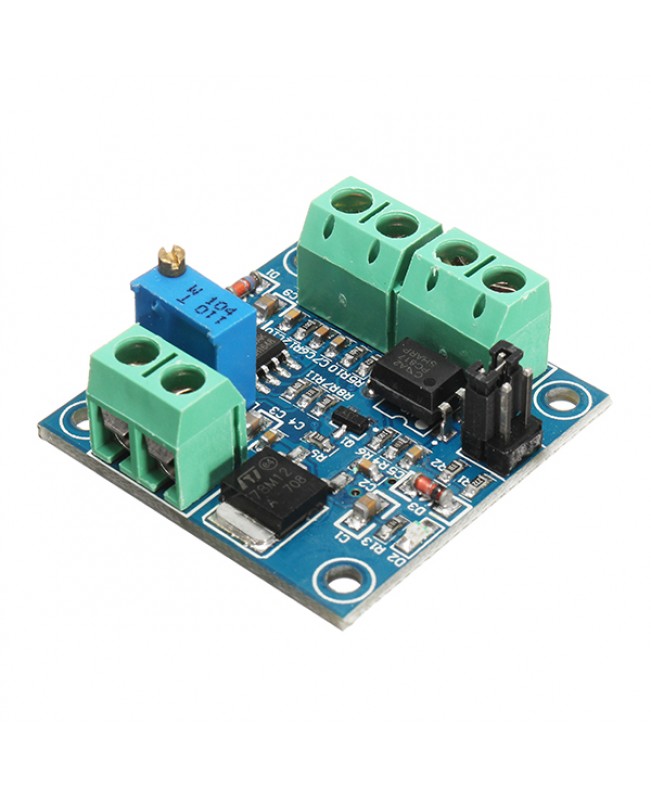

5Pcs PWM To Voltage Conversion Module 0-100% PWM To 0-10V Voltage

5Pcs PWM To Voltage Conversion Module 0-100% PWM To 0-10V Voltage

0 reviews / Write a review
  • $31.40
  • Ex Tax: $31.40
  • Product Code: model_159
  • Availability: In Stock

Product Description

Description:

Using single chip embedded technology;
Peak 4.5v to 10V level, jumper inserted at 5V. This level of signal mainly for conventional industrial control card (such as MACH3 board Card) 5V CPU interface;
Easy to operate, can be fine-tuned by potentiometer;
Select the PWM signal input level range through short cap;

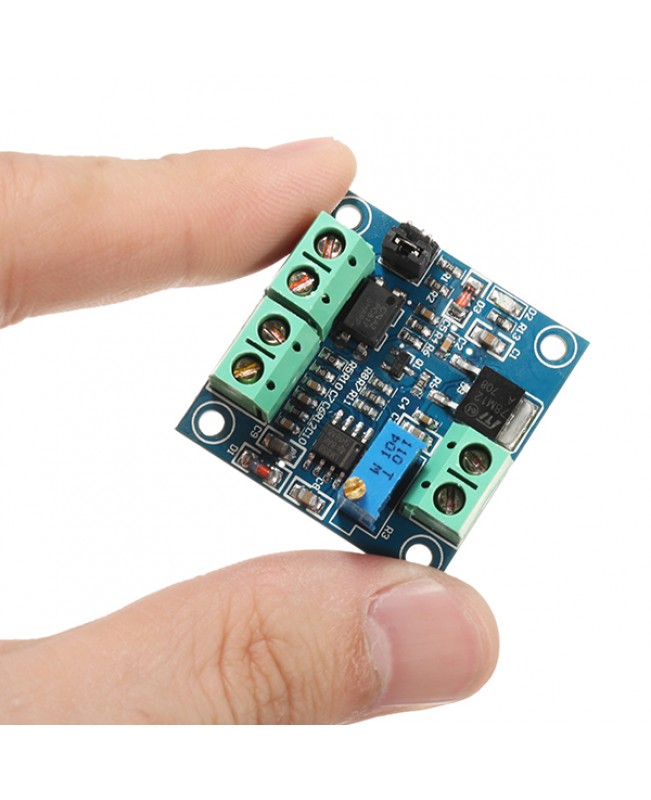

Module is small, easy to carry and use;
Module operating voltage: DC12V-30V (power requirements: greater than 100mA);
PWM signal reception frequency range: 1KHz-3KHz;
Peak 12 to 24V level, jumper inserted in the 24V. This level of signal is mainly aimed at the conventional PLC interface;
Conversion range: 0 -100 PWM to 0-10v voltage;
Allowable error: 5;

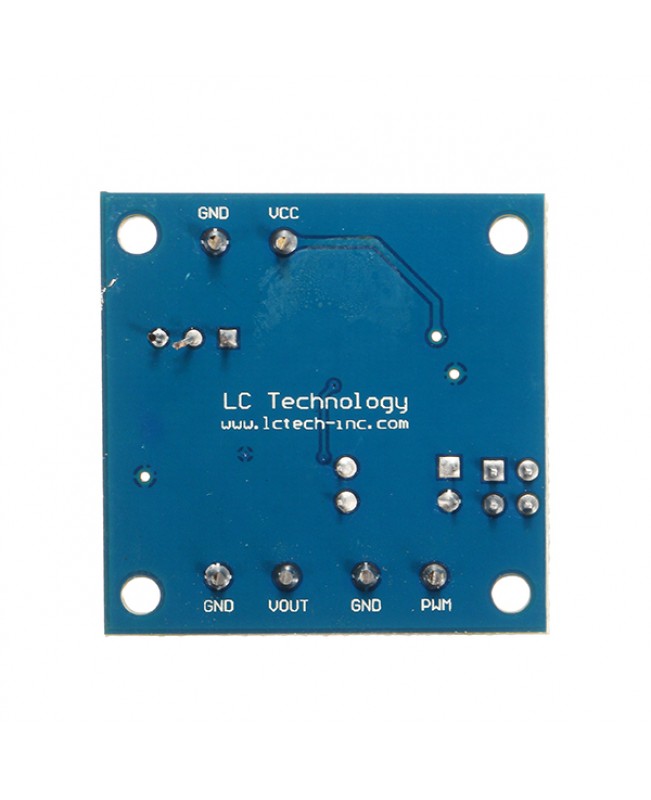

Pin Definition:

VCC: working power 12-30V
GND: ground
PWM: input PWM signal positive
GND: input voltage ground
VOUT: Output voltage: 0-10V
GND: output ground

Package included:

5 x PWM To Voltage Conversion Module 0-100 PWM To 0-10V Voltage
