Product Description

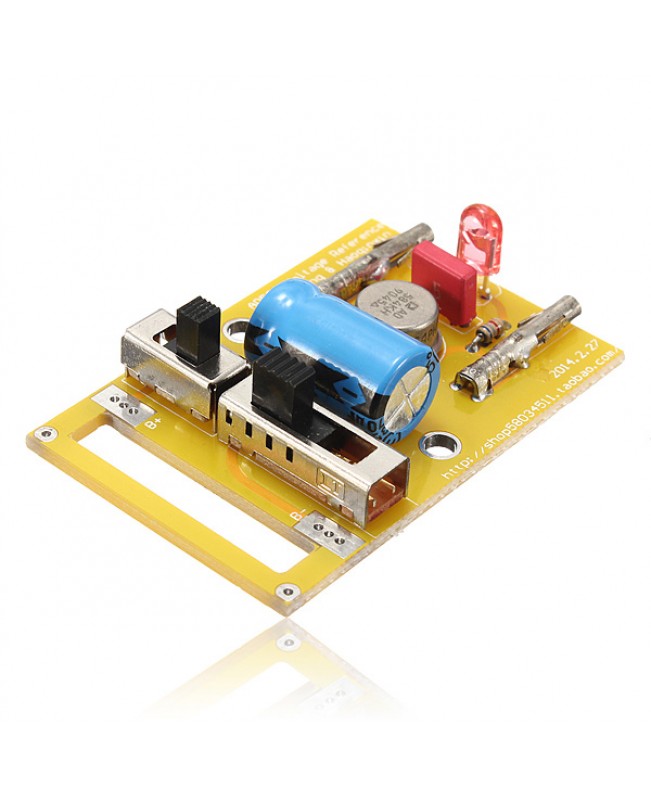

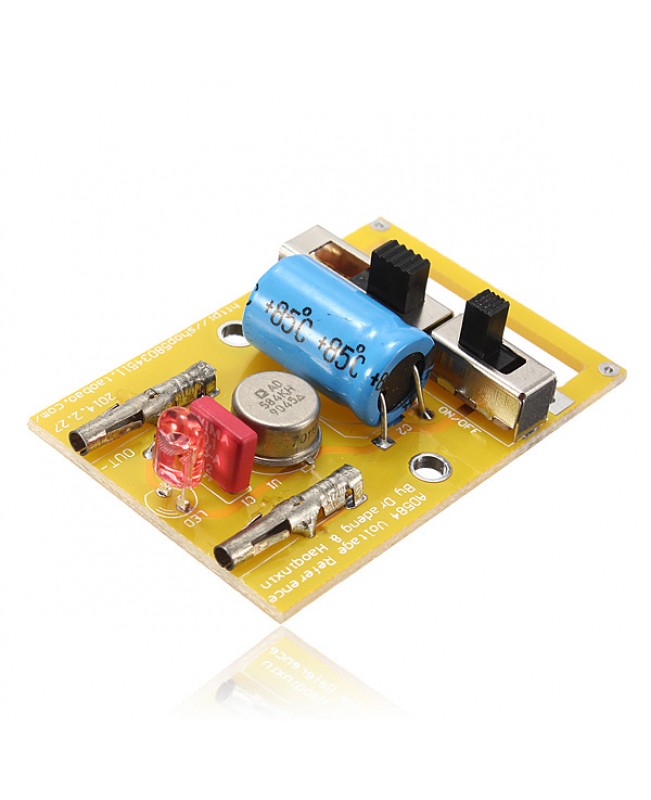

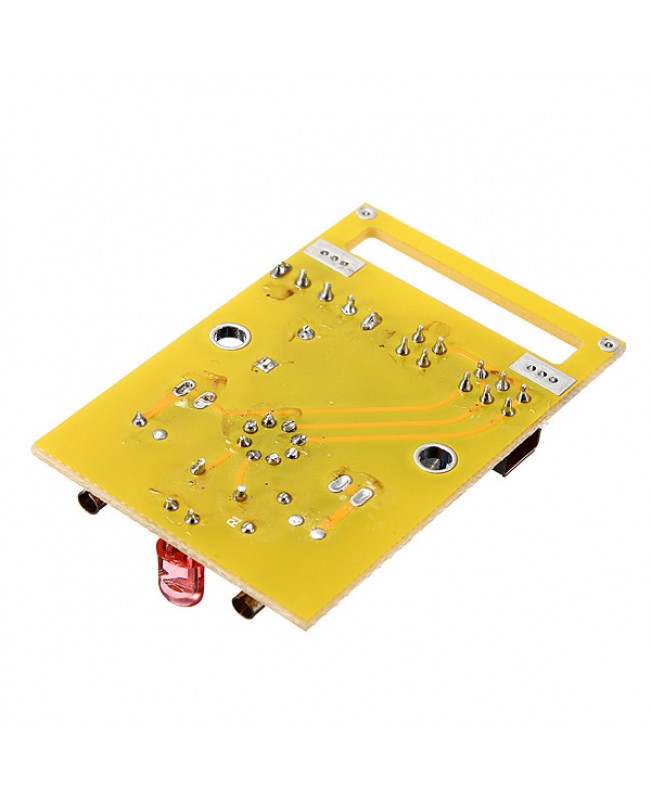

AD548 High Precision Voltage Reference Module 4 Channel Calibration

Features:

4 reference voltage can be outputted: 2.7V, 7.5V, 5V, 10V 4 gears switch 4 channel reference voltage output. Output interface is the terminal which can be inserted directly by ordinary multimeter pen. Reference discrete voltage is small. Temperature is stable.

Specification:

Weight: about 14g Size: 4.9 x 3.2 x 1.2 cm (L x W x H)

Note:

If your table is a high table, for example, more than six and a half, it is recommended to use a better benchmark, such as LTZ1000, LM399. Please read this instructions carefully before use, make sure each reference plate are correctly connected the battery, after heat engine for half an hour then begin to calibration each gear, after manually record the actual voltage values then put it into the anti-static bag directly.

Package included:

1 x AD548KH voltage reference module

AD584 Specifications (@Vin= +15V and 25°C)
