Product Description

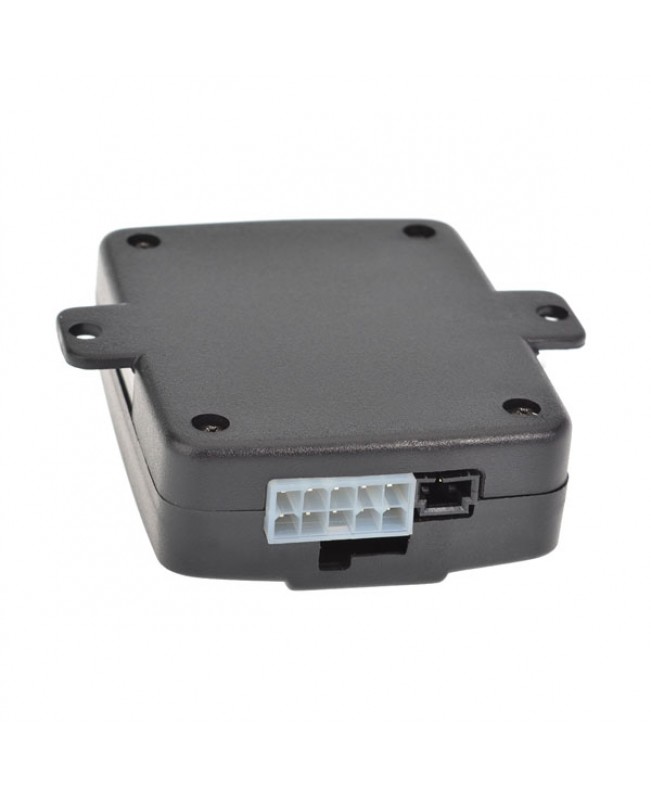

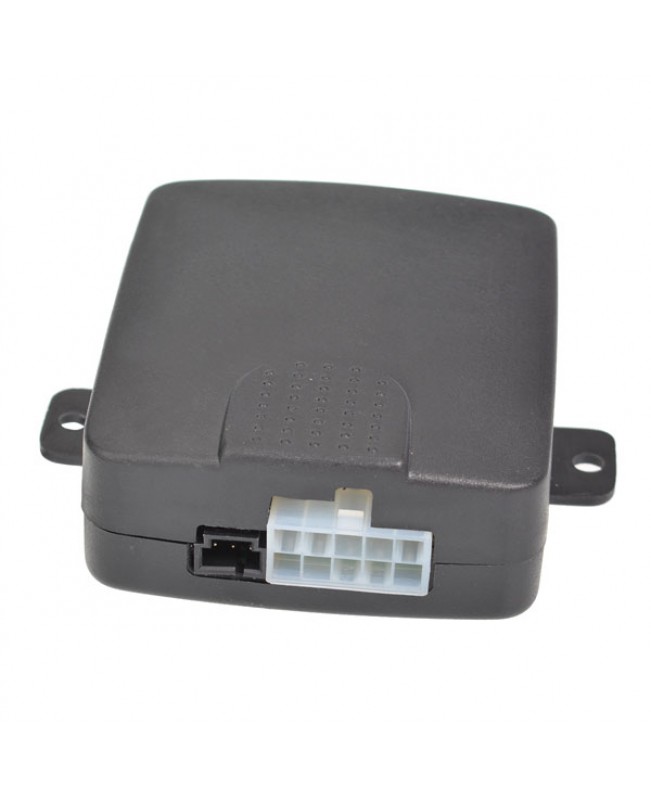

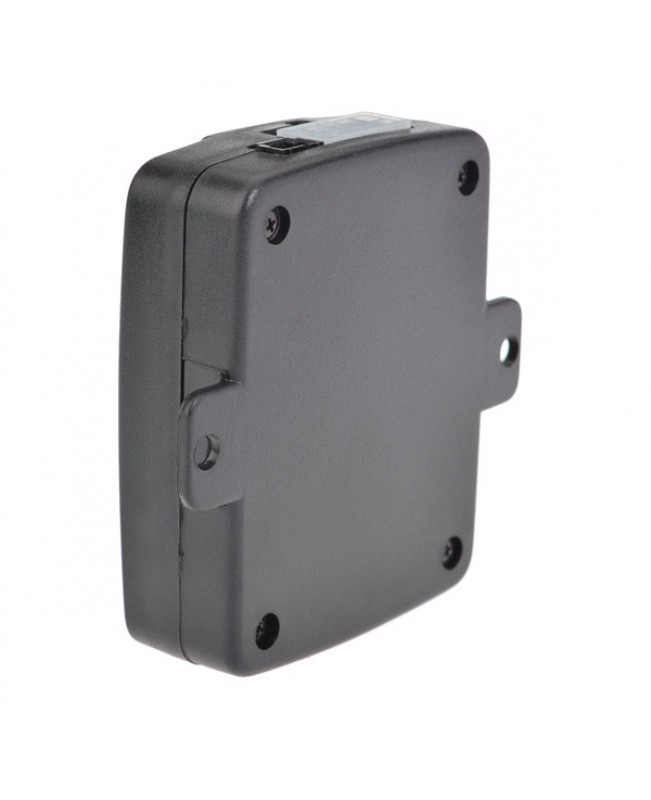

Automatic Headlight Sensor Car Headlight Control System Sensor Module
Description:
Car Auto-sensing headlights Adoption German optical technology, To identify changes in ambient light control on and off the car lights off, Can completely replace manual operation.
Function:
1.Automatic switch lights 2.Unlock lighting, Welcome function (lighting time adjustable) Note: small part of some models do not have this feature or a single light a small lamp for normal 3.Turn off delay function with your home (Delay time can be adjusted) Note: small part of some models do not have this feature or a single light a small lamp for normal 4.Battery Protection (3 seconds after the ignition lights) 5.The sensitivity of the automatic memory function (current brightness for the next lights brightness) 6.Grading lights (by light automatic small lights. Headlights) 7.Select delayed 3 seconds lights 8.AB automatic lights choose Specifications:
Working voltage: 9V-18V (wide adaptation voltage) Work consumption: less than 0.2W (ultra-low consumption according to the ultra-high reliability) The working life of more than 80,000 hours (more than the life of the main components of 150,000 hours) Working temperature: -20 degrees C to +80 degrees C
Instructions For Use:
1.Turn on automatic headlights: light combination switch placed in the OFF position, Also known as closed files that our products autopilot, sensing headlights will illuminate. 2.Turn off automatic or turn on: automatic switch is turned off automatically a press release, induction lamp. Then turn Auto, press the release switch is turned on automatically, sensing automatic headlights headlights will light functions: 3.Set Description: The red button switch for automatic switch can be with yourself in any one of your favorite location. IO is set to automatically switch press release 2 consecutive times, speed 2 seconds to complete) (1) lights delay setting, head to the bright light is relatively strong place, do not turn off the IO setup, Sensing headlights will flash three times, and three times to set a successful host. To resume without delay do IO settings, flash ring once again successfully set The lights turn off delay setting, head to the dark, such as a garage or at night, unplug the key (a key to start the flame), Such as 2 minutes, do IO setting short beep, delay start small lamp success. IO settings do long beeps twice delayed opening headlight success. (3)sensitivity setting automatic lights, drive the truck to the next time you turn on the lights for light, Or light for their turn on the lights, do not turn off, do IO settings, sound 6 sound local time for the next turn on the light rays of light . (4)Unlock lighting choices, drive the truck to the dark, such as a garage or at night, unplug the key (a key to start the flame), Such as 2 minutes, remote unlocking bright headlights, wait two minutes, do the IO setup, A short beep delay small lamp lights set up, do IO long beeps twice delayed the opening set headlights success. (5) Turn off delay time setting, head to the dark, such as a garage or at night, unplug the key (a key to start the flame), And he started doing a few, such as IO 1.2.3 immediately rang three sound set is delayed 3 seconds , How long you want to wait long to do IO settings such as: sound 10 sound delay time is 10 seconds set up successfully. (6)Unlock time setting, head to the dark, such as a garage or at night, unplug the key (a key to start the flame), Such as three minutes, remote keyless entry lights lit, the time counting as soon 1.2.3.4.5.6 do IO setting the sound will ring 6, Unlock lights for six seconds set successfully
Note:

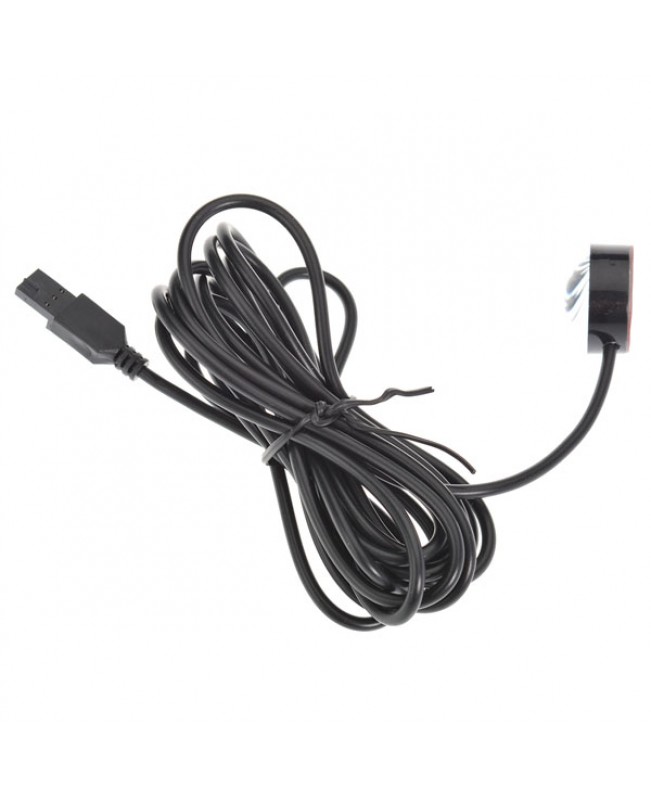

Sensors attached to the dashboard, you can not block, to avoid misuse, sensors above the glass should be cleaned to avoid oil, ash layer.
Package Included:

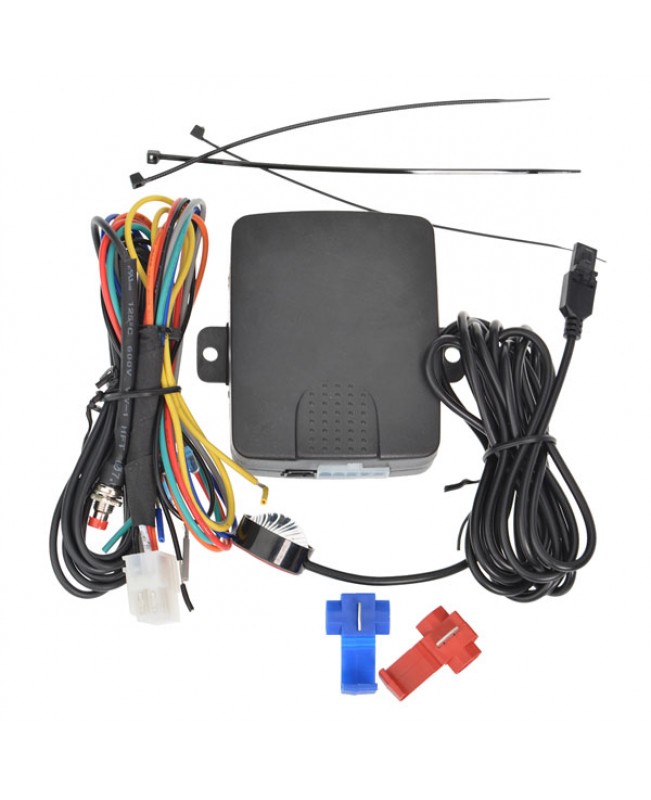

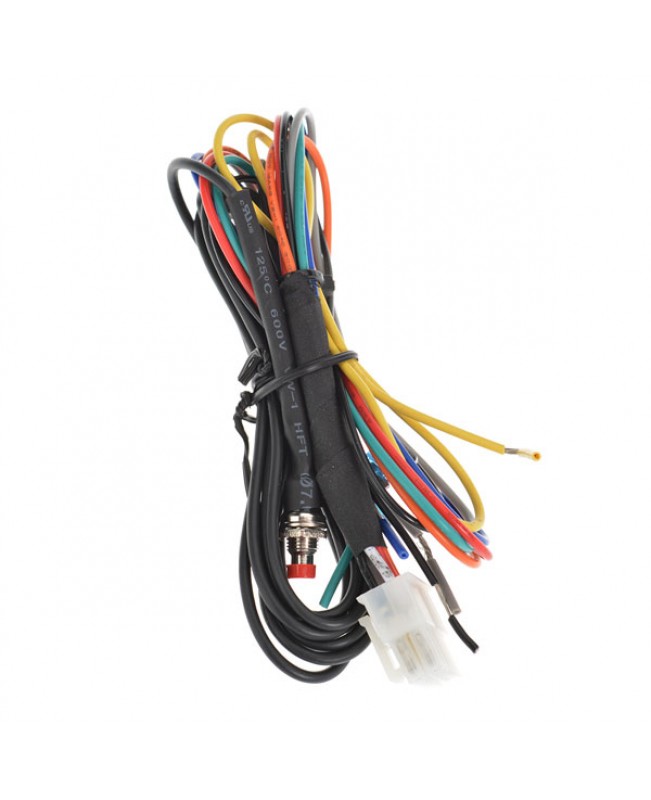

1 X Automatic headlight sensor system 1 X Manual
