Product Description

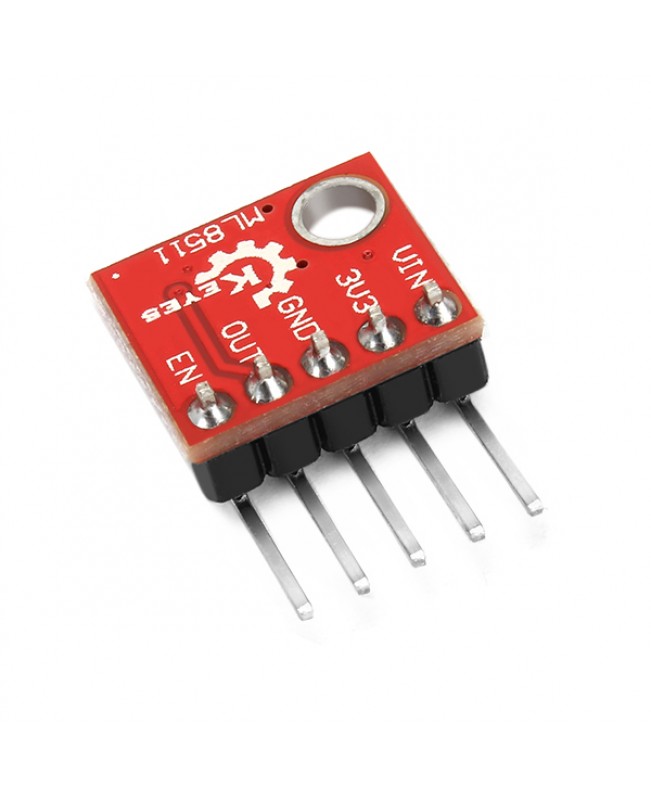

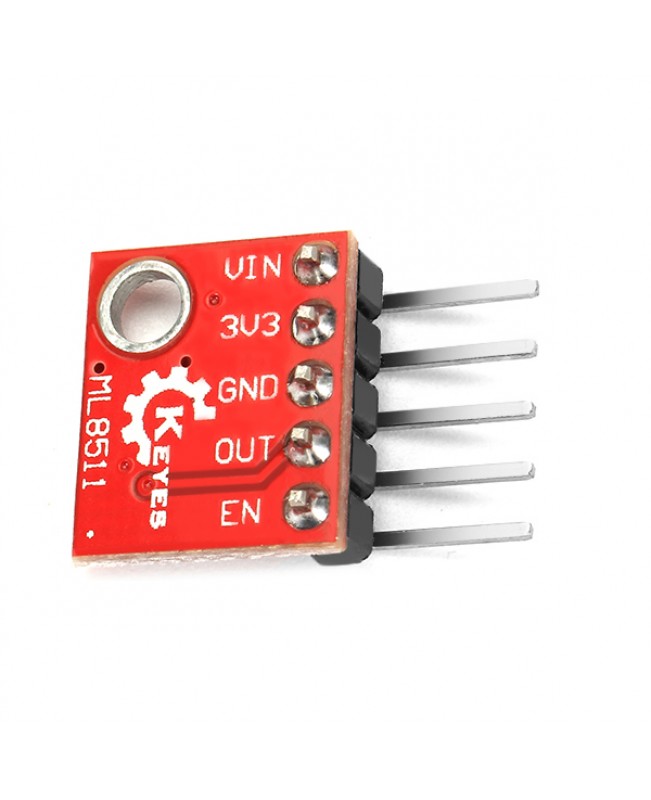

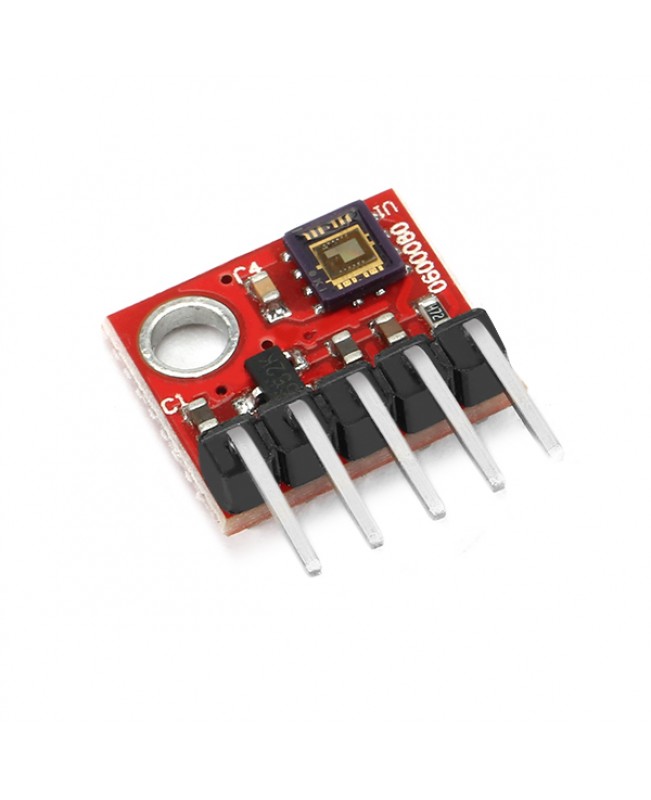

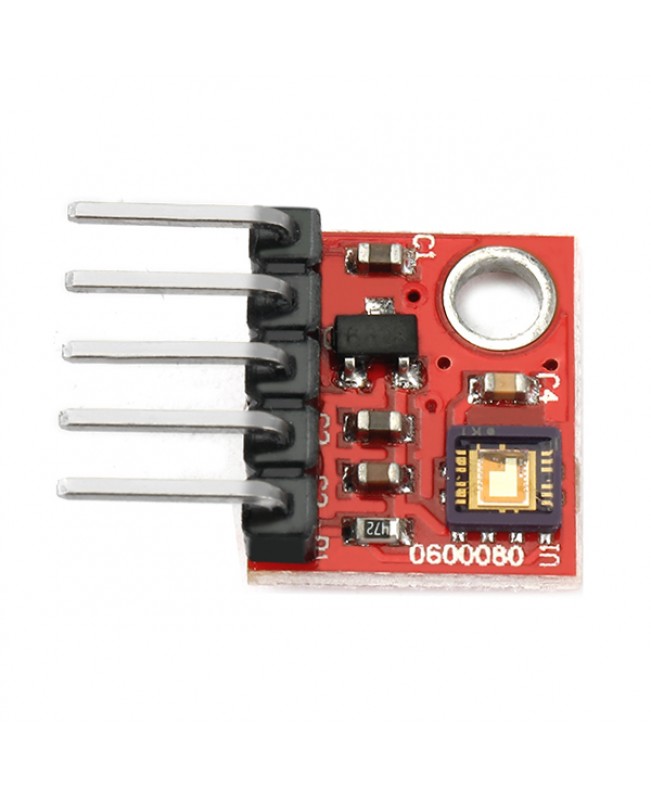

GY-ML8511 Ultraviolet Sensor Module Analog Output UV Sensor

Description:

– The module uses a common original ML8511 UV sensor that can detect the indoor or outdoor UV density. – Sensor IC uses a readily highly integrated SOI-CMOS technology, suitable for digital and analog circuits. – By the principle of turning photocurrent into voltage to detect UV intensity, it's suitable to be used by an external circuit. – Analog voltage can be output when ML8511 is proportional to UV light. – Since the voltage can be output, it can be directly connected to the built-in MCU's A / D digital / analog converter, no need for photoelectric conversion circuit. – With the use of small, thin surface package, it's suitable for portable devices. – The module also has a power saving mode up to 0.1uA, suitable for smart wearable devices or mobile phones to use.

Parameter:

Working voltage: DC 5V Working temperature: -20~70°C Sensitive areas: UV-A, UV-B Sensitive wavelength: 280~390nm Module size: 30 x 22mm

Package included:

1 x Sensor
