Product Description

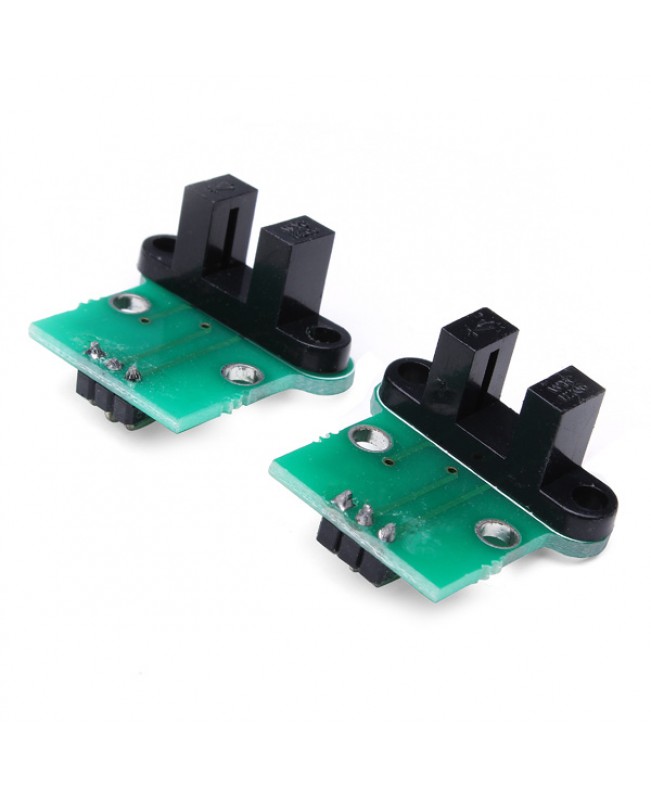

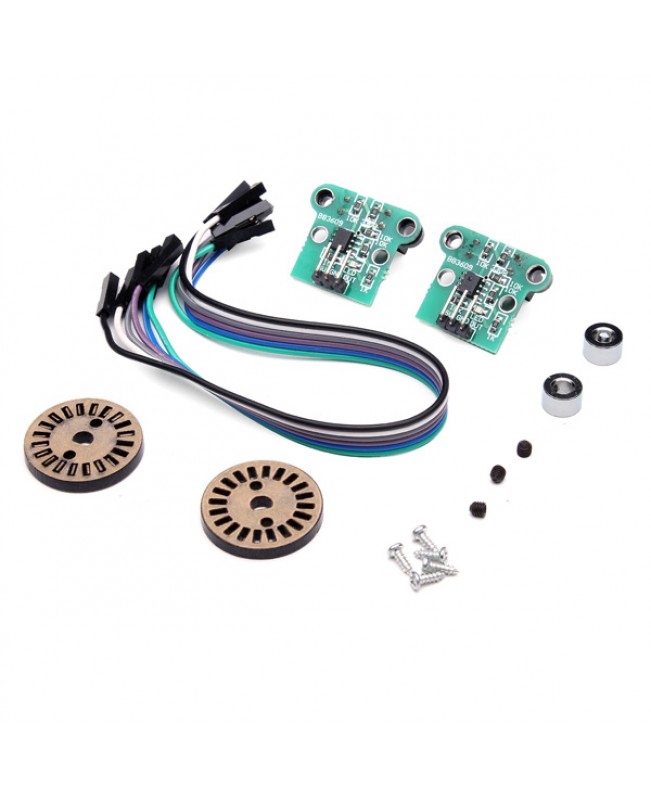

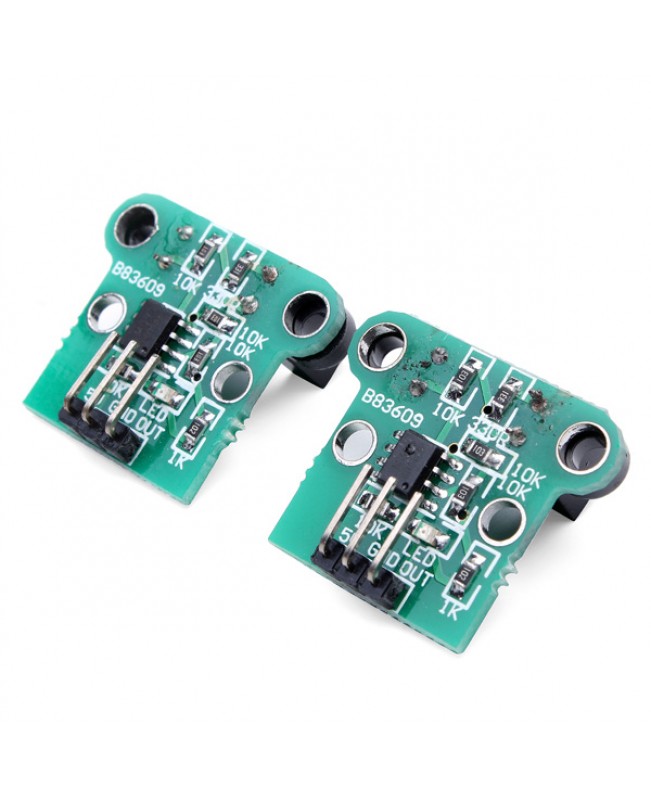

HC-020K Double Speed Measuring Module With Speed Encoder Kit

Feature:

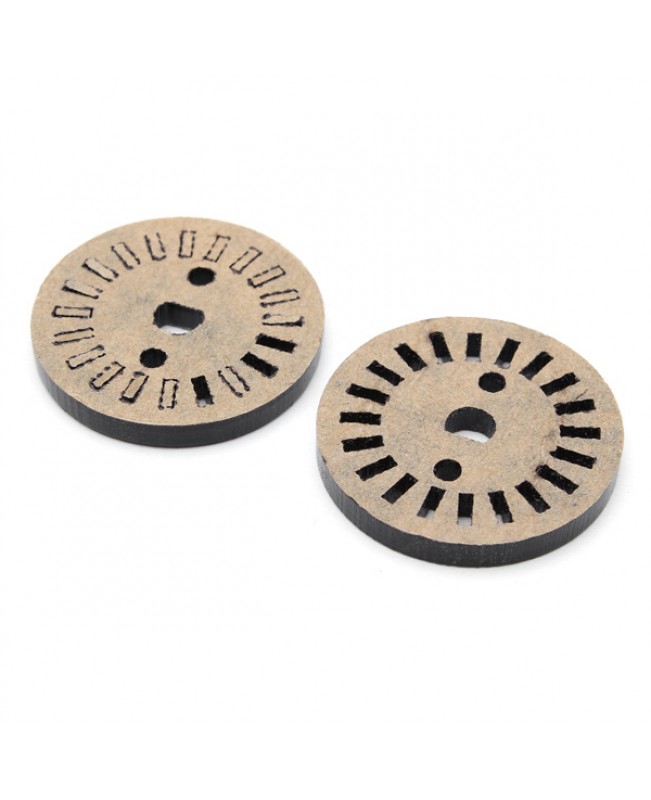

HC-020K is a high resolution, short response speed, wide voltage switch output speed measuring module, with black encoder can measure motor speed (Now provide the encoder type D, hole diameter is 4 mm. Can be used to output shaft is 4 mm motor).

Description:

Working voltage: 4.5V to 5.5 V.Transmit tube pressure drop: Vf = 1.6 VTransmit tube current: 20 mASignal output: A, B two way; The TTL levelDistinguish precision: 0.01 mmMeasurement frequency, 100 KHZEncoder diameter: 24 mmEncoder type D hole diameter: 4 mmThe encoder resolution: 20 lineSpeed measuring sensor configuration: The configuration can measures 1 road motor speed

Note: This is for RP5 tank caterpillar vehicles speed measuring module, just hit four holes in the RP5 tracked vehicle

Package included:

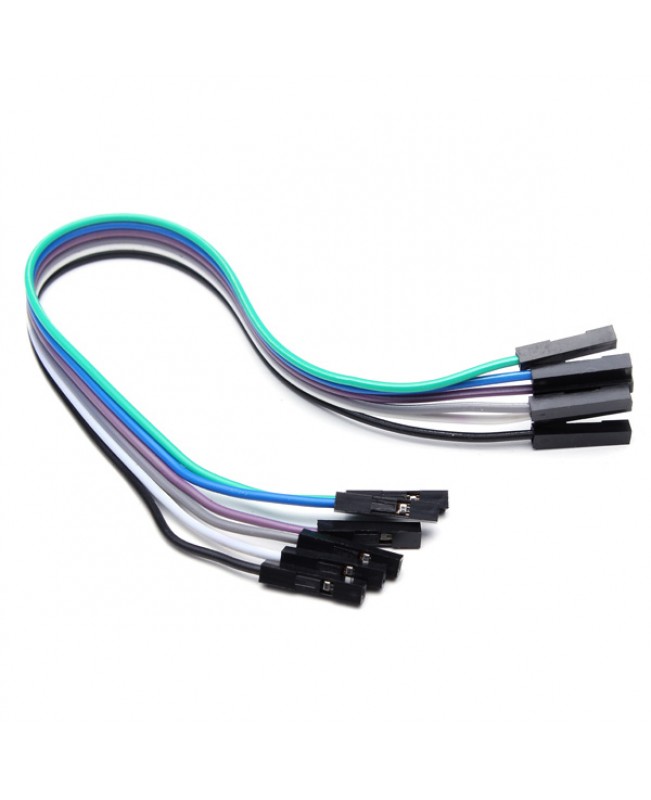

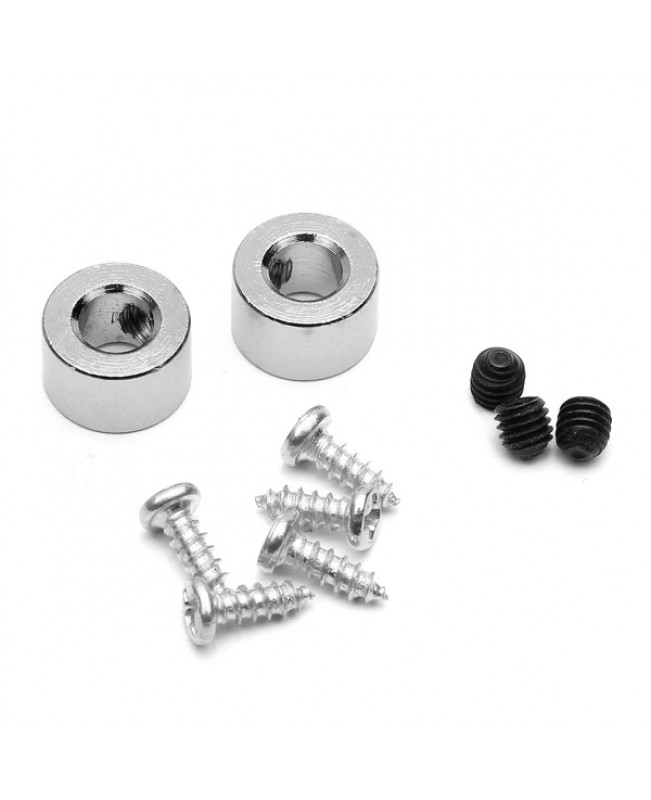

1 x RP5 Double Speed Measuring Module kit
