Product Description

Matek RGB LED Board 12V/5V Light Board For FPV Helicopter Multi-axis

Specifications:

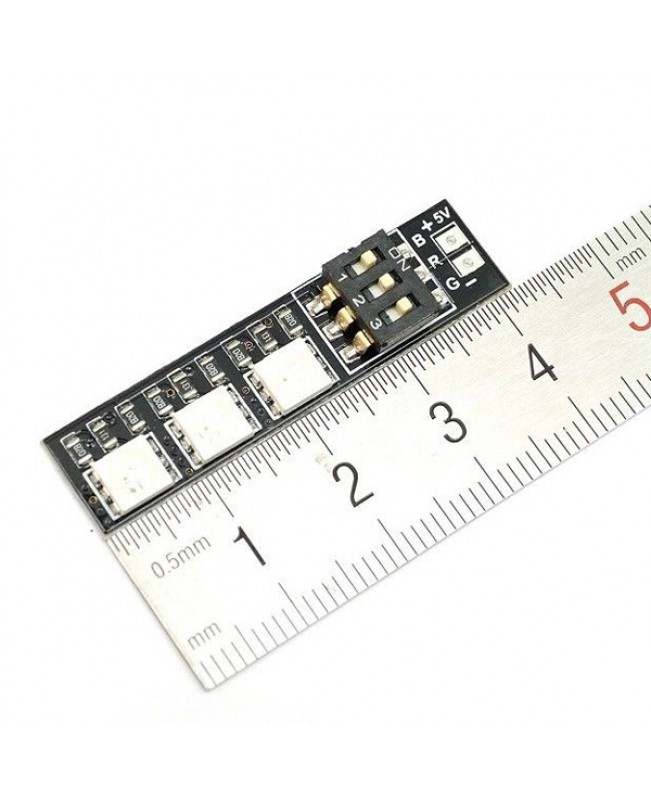

INPUT: 10-13V DC(12V), 4-6V DC(5V) Size: 47*10mm(12V), 42*10mm(5V) Weight: About 2g Packing: LED BOARD, 1pc, Cable 0.3m

Features:

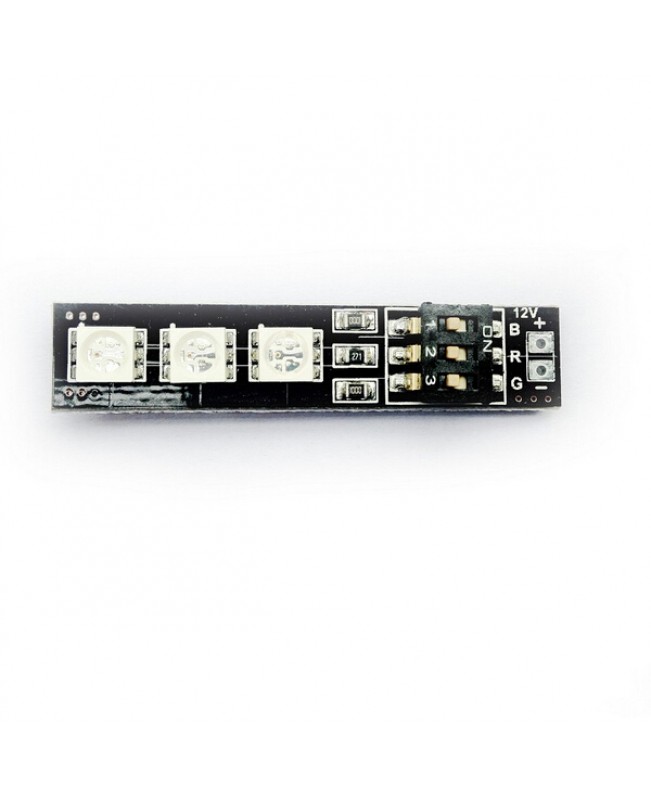

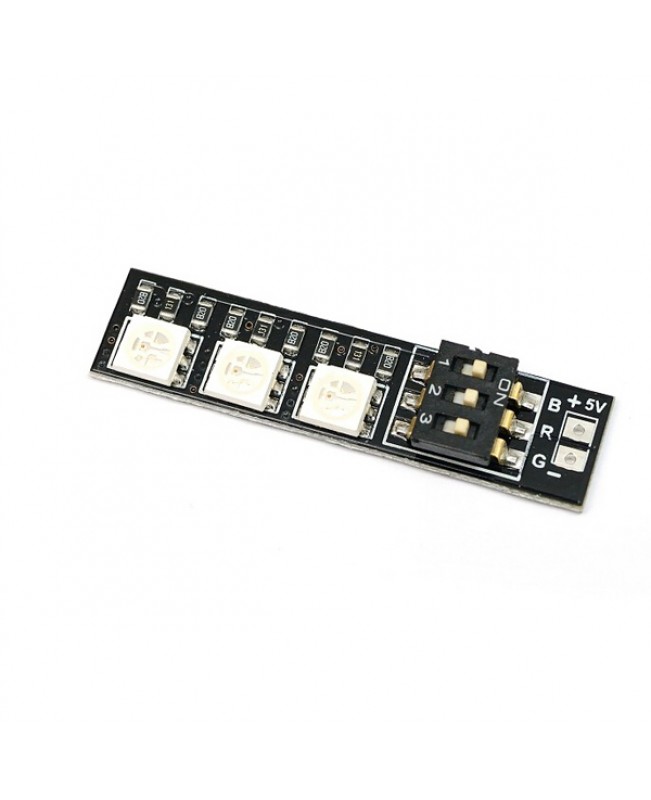

1.Comes with a 0.3m long cable, users can cut it to a suitable length; 2.Be ware of the positive and negative poles, as well as the insulation; 3.Switch the related codes to ON, seven colors are selectable;

Selectable Colors:

12V: B ON =Blue, 0.35W, 0.03A R ON =Red, 0.35W, 0.03A G ON =Green, 0.35W, 0.03A B+R =Megenta, 0.70W, 0.06A B+G =Cyan, 0.70W, 0.06A R+G =Yellow, 0.70W, 0.06A B+R+G =White, 1.05W, 0.09A 6V: B ON =Blue, 0.35W, 0.07A R ON =Red, 0.35W, 0.07A G ON =Green, 0.35W, 0.07A B+R =Megenta, 0.70W, 0.14A B+G =Cyan, 0.70W, 0.14A R+G =Yellow, 0.70W, 0.14A B+R+G =White, 1.05W, 0.21A

Note:

Model 1:  5V Model 2: 12 V

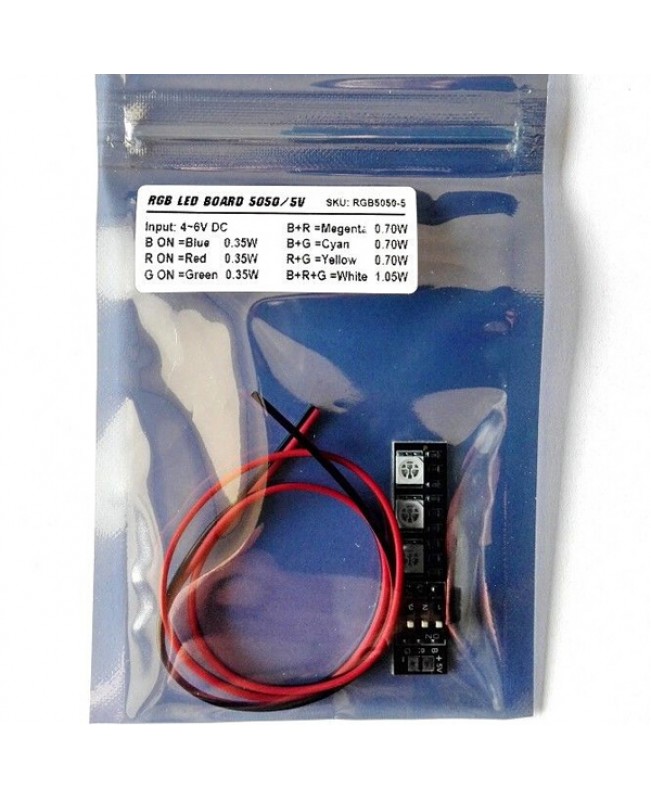

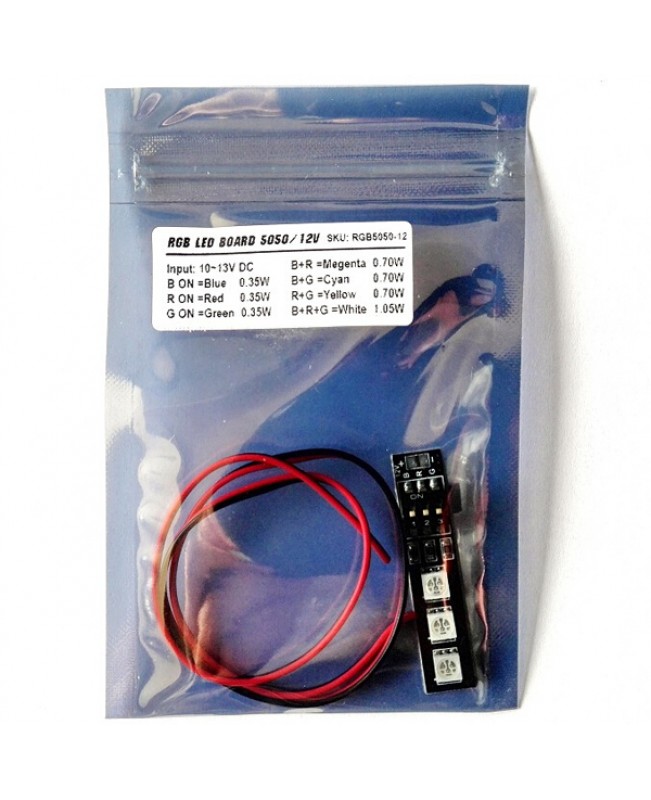

Package Included: 1* LED Board
